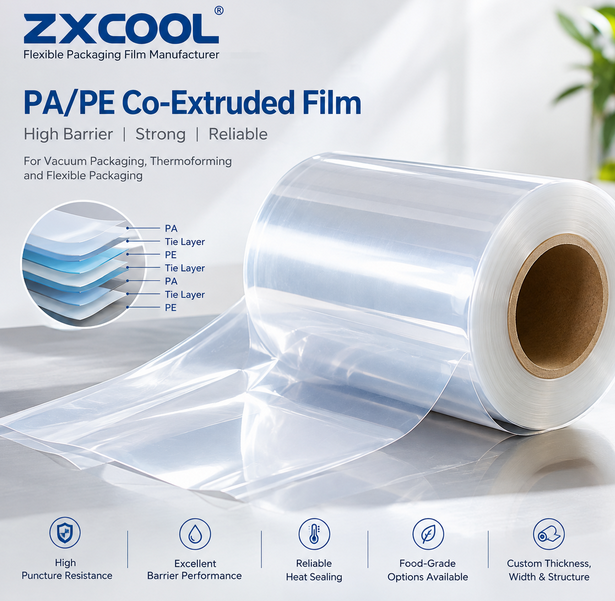

PA/PE Co-Extruded Film for Vacuum, Thermoforming & Flexible Packaging
PA/PE Co-Extruded Film is a multilayer flexible packaging film designed to combine the mechanical strength and puncture resistance of polyamide (PA/nylon) with the heat-sealing, moisture resistance and flexibility of polyethylene (PE).
ZXCOOL manufactures custom PA/PE multilayer film rolls for vacuum packaging, thermoforming, food packaging and other demanding flexible packaging applications. Depending on the application, we can produce 7-layer, 9-layer, 11-layer and customized multilayer structures using blown-film or cast-film technology.
Film thickness, width, layer structure, PA/PE ratio, sealing layer, barrier performance, transparency, color, surface treatment and roll specifications can all be customized to match your packaging equipment and product requirements.
*Maximum width depends on film structure, production process and final specification.
PA/PE Film Specifications
| Item | ZXCOOL Options |
|---|---|
| Product Type | PA/PE Co-Extruded Film / Multilayer Packaging Film |
| Layer Structure | 7-layer, 9-layer, 11-layer and customized multilayer structures |
| Typical Materials | PA / PE; PE / PA / PE; PA/EVOH/PE and other customized structures |
| Production Process | Blown Film / Cast Film / Co-Extrusion |
| Thickness | 30–400 μm, customized |
| Width | Up to 2,800 mm, customized according to structure and process |
| Roll Length | Customized |
| Color | Transparent, white, black, blue and customized colors |
| Printing | Custom printing available for suitable structures |
| Food Contact | Food-grade / food-contact compliant options available |
| Testing & Compliance | Food-contact testing, migration testing and selected customer-specific testing available |
7-Layer, 9-Layer & 11-Layer PA/PE Film
Multilayer co-extrusion allows different polymers to be combined into a single film structure, giving each layer a specific function. Depending on the application, ZXCOOL can design the structure around sealing, mechanical strength, oxygen barrier, moisture barrier, forming performance and puncture resistance.
| Structure | Typical Purpose |
|---|---|
| 7-Layer | Balanced packaging performance, suitable for standard flexible packaging applications |
| 9-Layer | More precise functional-layer design for demanding vacuum and barrier applications |
| 11-Layer | Advanced multilayer construction for demanding thermoforming, barrier and high-puncture applications |
| Custom Layers | Customized layer configuration according to product and packaging requirements |
Commercial suppliers commonly use 7-, 9- and 11-layer co-extrusion for food and thermoforming films, with higher layer counts allowing more functional layers to be incorporated into the structure.
Blown Film or Cast Film Production
ZXCOOL can supply PA/PE multilayer films produced using different co-extrusion technologies according to the required application and film specifications.
Blown PA/PE Film
Blown-film extrusion is suitable for multilayer structures requiring high mechanical performance, flexibility and customized film construction. It can be used for a wide range of vacuum packaging and flexible packaging applications.
Cast PA/PE Film
Cast-film production can provide excellent thickness uniformity, surface quality and optical properties, making it suitable for applications where consistent gauge, transparency and forming performance are important.
The appropriate process is selected according to film thickness, width, structure, forming requirements, optical properties and end-use application.
PA/PE Film Material Structures
PA/PE does not refer to only one fixed layer configuration. The final structure can be engineered according to the required performance.
Typical PA/PE Structure
PA / Tie / PE
Multilayer Structure Example
PE / Tie / PA / Tie / PE
For higher oxygen-barrier requirements, an EVOH layer can be incorporated:
High-Barrier Option
PE / Tie / PA / EVOH / PA / Tie / PE
Actual layer configuration and material ratios are customized according to the required barrier performance, sealing characteristics, forming depth, puncture resistance and packaging process.
Food-Grade PA/PE Packaging Film
ZXCOOL can provide food-grade PA/PE film for food-contact applications, with material selection and testing based on the intended packaging conditions.
Food-contact applications may require evaluation of the packaged food type, contact temperature, contact time and applicable migration requirements. For European food-contact applications, plastic materials are subject to specific migration and overall compliance requirements under applicable EU food-contact legislation.
Available testing and compliance documentation can be discussed according to the destination market and application, including customer-specific food-contact and migration testing.
Available Testing & Compliance
For B2B packaging projects, material performance and regulatory documentation can be as important as the film itself. ZXCOOL can support customers with relevant testing and compliance documentation according to the target market and application.
- Food-contact related testing
- Migration testing
- Material safety testing
- Physical and mechanical property testing
- Thickness and dimensional inspection
- Tensile strength testing
- Elongation testing
- Heat-seal strength testing
- Puncture resistance testing
- Oxygen transmission testing
- Water vapor transmission testing
- CPSC-CH-C1001 related testing requirements
- Customer-specific testing and documentation
Important: The applicable testing standard depends on the final material structure, product application, destination market and customer requirements. Please specify the target country and end use when requesting a quotation.
Key Performance Properties
| Performance | PA/PE Film Advantage |
|---|---|
| Puncture Resistance | PA provides high mechanical strength and resistance to puncture |
| Heat Sealing | PE sealing layer provides reliable heat-sealing performance |
| Oxygen Barrier | PA provides moderate oxygen barrier; EVOH can be added for higher barrier requirements |
| Moisture Barrier | PE provides good moisture resistance |
| Flexibility | Suitable for flexible packaging and vacuum applications |
| Thermoforming | Selected structures can be engineered for thermoforming applications |
| Low-Temperature Performance | Suitable structures can be developed for chilled and frozen packaging applications |
PA/PE Film for Vacuum Packaging
PA/PE film is widely used for vacuum packaging because the material combines mechanical strength with heat-sealing performance.
- Fresh meat
- Frozen meat
- Poultry
- Seafood and fish
- Cheese and dairy products
- Sausages and processed meat
- Frozen food
- Prepared foods
- Other products requiring vacuum packaging
The PA layer helps resist puncture from sharp edges, bones and rough products, while the PE layer provides the sealing function required for pouch and rollstock production.
PA/PE Thermoforming Film
For thermoforming applications, ZXCOOL can customize the film structure according to forming depth, thickness, sealing requirements, barrier performance and packaging-machine specifications.
Available options include:
- Forming film
- Non-forming film
- Bottom web
- Top web
- Vacuum thermoforming film
- High-puncture-resistance film
- High-barrier PA/EVOH/PE structures
- Peelable sealing options
- Anti-fog options
- High-transparency options
Commercial thermoforming-film specifications commonly include customized multilayer structures, different gauges and widths, with separate top and bottom films selected according to the packaging machine and forming process.
Custom Film Thickness: 30–400 μm
Film thickness can be customized according to application requirements. Thin gauges can be used where material efficiency and flexibility are important, while thicker gauges are suitable for applications requiring greater puncture resistance and forming performance.
| Thickness Range | Potential Applications |
|---|---|
| 30–60 μm | Lightweight flexible packaging and selected pouch applications |
| 60–120 μm | Vacuum packaging and general flexible packaging |
| 120–220 μm | Heavy-duty vacuum and forming applications |
| 220–400 μm | Heavy-gauge thermoforming and demanding applications |
The actual recommended gauge should be determined by product weight, puncture risk, forming depth, packaging machine and required barrier performance.
Custom Film Width up to 2,800 mm
ZXCOOL can provide wide-width multilayer film rolls for industrial converting and automated packaging applications. Available width depends on the production technology, film structure and final application.
For reference, current suppliers publicly advertise widths from approximately 1,600 mm to 2,300 mm and, for selected multilayer structures and production processes, up to approximately 2,800 mm.
Additional Customization Options
- PA/PE ratio
- Layer configuration
- EVOH barrier layer
- Sealing temperature
- Seal strength
- Peelable seal
- Anti-fog treatment
- Corona treatment
- High transparency
- Colored film
- Printing
- Surface properties
- Coefficient of friction
- Forming performance
- Deep-draw performance
- Oxygen barrier level
- Water vapor barrier level
- Roll diameter
- Core size
- Roll length
- Packaging method
PA/PE Film Applications
Meat Packaging
Vacuum and thermoforming film for fresh, chilled and frozen meat products.
Seafood Packaging
Flexible film for fish, seafood and products requiring high puncture resistance.
Dairy Packaging
Film for cheese, butter and other selected dairy products.
Processed Foods
Packaging film for sausages, cooked foods and prepared food products.
Frozen Foods
Suitable structures can be developed for chilled and frozen packaging applications.
Industrial Packaging
Custom multilayer film for selected industrial and technical packaging applications.
Why Source PA/PE Film from ZXCOOL?
- Multilayer co-extrusion capability for customized film structures
- 7-, 9- and 11-layer production options
- Blown-film and cast-film technology
- 30–400 μm thickness range
- Wide-width film production up to 2,800 mm*
- PA/PE and PA/EVOH/PE structures
- Food-contact film options
- Customized barrier and sealing performance
- Custom printing and color options
- Technical testing and quality documentation
- OEM and customized specifications
*Maximum width depends on film structure and production process.
What Information Should You Include in a PA/PE Film RFQ?
For an accurate quotation and film recommendation, please provide:
- Application and packaged product
- Vacuum, thermoforming or other packaging process
- Required film structure
- Number of layers, if specified
- Film thickness
- Film width
- Required roll length or roll weight
- Transparency or color requirement
- Required oxygen or moisture barrier
- Forming depth, if applicable
- Sealing requirements
- Packaging-machine model, if available
- Annual or trial order quantity
- Destination market
- Required certifications or testing standards
If you do not know the appropriate PA/PE structure, send us your product, packaging process, film dimensions and performance requirements. Our technical team can recommend a suitable multilayer structure for sampling and quotation.
Request a Custom PA/PE Film Quote
Need a specific thickness, width, layer structure or barrier level? Send ZXCOOL your packaging requirements and let us develop a PA/PE film solution for your application.
Request a Quote →
Frequently Asked Questions
What is PA/PE co-extruded film?
PA/PE co-extruded film is a multilayer packaging film combining polyamide (PA) and polyethylene (PE). PA contributes strength, toughness and oxygen-barrier properties, while PE is commonly used as the heat-sealing and moisture-resistant layer.
How many layers can PA/PE film have?
PA/PE film can be produced in different multilayer configurations. ZXCOOL supports 7-layer, 9-layer, 11-layer and customized structures depending on the required film performance.
What thicknesses are available?
ZXCOOL can manufacture PA/PE film from approximately 30 μm to 400 μm, with the final thickness selected according to application, forming requirements and mechanical performance.
What is the maximum film width?
Film width can be customized up to approximately 2,800 mm for suitable structures and production processes. The maximum practical width depends on the film structure and manufacturing technology.
Do you manufacture blown PA/PE film?
Yes. PA/PE multilayer film can be produced using blown-film extrusion. Blown-film and cast-film production can both be considered according to the required structure and application.
Do you offer cast PA/PE film?
Yes. Cast-film production is available for suitable PA/PE and multilayer packaging applications where thickness uniformity, surface quality, transparency and forming performance are important.
Is PA/PE film food grade?
Food-grade and food-contact compliant options are available. The applicable testing and documentation depend on the material structure, intended food type, contact conditions and destination market.
Can PA/PE film be used for vacuum packaging?
Yes. PA/PE film is widely used for vacuum packaging of meat, seafood, cheese, processed foods and other products requiring strong, flexible and heat-sealable packaging.
Can PA/PE film be used for thermoforming?
Yes. Customized PA/PE and PA/EVOH/PE structures can be developed for thermoforming applications, including forming and non-forming films.
Can you provide PA/EVOH/PE high-barrier film?
Yes. EVOH can be incorporated into a multilayer structure when higher oxygen-barrier performance is required. The appropriate structure depends on the required OTR, WVTR, shelf life and packaging conditions.
Can you provide CPSC-CH-C1001 related testing?
Yes. Customer-specific testing requirements, including CPSC-CH-C1001 related requirements, can be supported where applicable. Please specify the target market and product application when requesting documentation.
Can you provide samples?
Sample availability depends on the required structure and specification. Please provide your application, thickness, width and intended use so we can confirm a suitable sample.
